ROS2 3Dslam建图 cartographer

liusiyu_alex_nuaa

最近有个项目用的是宇树雷达L1进行3D建图，按照网上的教程打算用cartographer算法来搞，但是运行起来从rviz来看只有2维地图，点云和imu的数据都是有的

cartographer.launch.py

import os
from launch import LaunchDescription
from launch.substitutions import LaunchConfiguration
from launch_ros.actions import Node
from launch_ros.substitutions import FindPackageShare


def generate_launch_description():
    # 定位到功能包的地址
    pkg_share = FindPackageShare(package='robot_cartographer').find('robot_cartographer')

    #=====================运行节点需要的配置=======================================================================
    # 是否使用仿真时间
    use_sim_time = LaunchConfiguration('use_sim_time', default='false')
    # 地图的分辨率
    resolution = LaunchConfiguration('resolution', default='0.05')
    # 地图的发布周期
    publish_period_sec = LaunchConfiguration('publish_period_sec', default='1.0')
    # 配置文件夹路径
    configuration_directory = LaunchConfiguration('configuration_directory',default= os.path.join(pkg_share, 'config') )
    # 配置文件
    configuration_basename = LaunchConfiguration('configuration_basename', default='robot_3d.lua')
    rviz_config_dir = LaunchConfiguration('rviz_config_dir',default= os.path.join(pkg_share, 'rviz') )

    #=====================声明三个节点，cartographer/occupancy_grid_node/rviz_node=================================
    cartographer_node = Node(
        package='cartographer_ros',
        executable='cartographer_node',
        name='cartographer_node',
        output='screen',
        parameters=[{'use_sim_time': use_sim_time}],
        arguments=['-configuration_directory', configuration_directory,
                   '-configuration_basename', configuration_basename],
        remappings = [
            ('points2', 'cloud')],)

    occupancy_grid_node = Node(
        package='cartographer_ros',
        executable='cartographer_occupancy_grid_node',
        name='occupancy_grid_node',
        output='screen',
        parameters=[{'use_sim_time': use_sim_time}],
        arguments=['-resolution', resolution, '-publish_period_sec', publish_period_sec])

    rviz_node = Node(
        package='rviz2',
        executable='rviz2',
        name='rviz2',
        arguments=['-d', rviz_config_dir],
        parameters=[{'use_sim_time': use_sim_time}],
        output='screen')

    #===============================================定义启动文件========================================================
    ld = LaunchDescription()
    ld.add_action(cartographer_node)
    ld.add_action(occupancy_grid_node)
    ld.add_action(rviz_node)

    return ld

robot_3d.lua

-- Copyright 2016 The Cartographer Authors
--
-- Licensed under the Apache License, Version 2.0 (the "License");
-- you may not use this file except in compliance with the License.
-- You may obtain a copy of the License at
--
--      http://www.apache.org/licenses/LICENSE-2.0
--
-- Unless required by applicable law or agreed to in writing, software
-- distributed under the License is distributed on an "AS IS" BASIS,
-- WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
-- See the License for the specific language governing permissions and
-- limitations under the License.

include "map_builder.lua"
include "trajectory_builder.lua"

options = {
  map_builder = MAP_BUILDER,
  trajectory_builder = TRAJECTORY_BUILDER,
  map_frame = "map",
  tracking_frame = "imu_link",
  published_frame = "base_link",
  odom_frame = "odom",
  provide_odom_frame = false,
  publish_frame_projected_to_2d = false,
  -- use_pose_extrapolator = true,

  use_odometry = false,
  use_nav_sat = false,
  use_landmarks = false,
  num_laser_scans = 0,
  num_multi_echo_laser_scans = 0,
  num_subdivisions_per_laser_scan = 1,
  num_point_clouds = 1,
  lookup_transform_timeout_sec = 0.2,
  submap_publish_period_sec = 0.3,
  pose_publish_period_sec = 5e-3,
  trajectory_publish_period_sec = 30e-3,
  rangefinder_sampling_ratio = 1.,
  odometry_sampling_ratio = 1.,
  fixed_frame_pose_sampling_ratio = 1.,
  imu_sampling_ratio = 1.,
  landmarks_sampling_ratio = 1.,
}

TRAJECTORY_BUILDER_3D.num_accumulated_range_data = 160

MAP_BUILDER.use_trajectory_builder_3d = true
MAP_BUILDER.num_background_threads = 7
POSE_GRAPH.optimization_problem.huber_scale = 5e2
POSE_GRAPH.optimize_every_n_nodes = 320
POSE_GRAPH.constraint_builder.sampling_ratio = 0.03
POSE_GRAPH.optimization_problem.ceres_solver_options.max_num_iterations = 10
POSE_GRAPH.constraint_builder.min_score = 0.62
POSE_GRAPH.constraint_builder.global_localization_min_score = 0.66

return options

机器人urdf文件

<robot name="cartographer_backpack_3d">
  <material name="orange">
    <color rgba="1.0 0.5 0.2 1" />
  </material>
  <material name="gray">
    <color rgba="0.2 0.2 0.2 1" />
  </material>

  <!-- IMU or 底盘 （可以描述尺寸大小也可以不描述） -->
  <link name="base_link" />

  <link name="imu_link" />

  <joint name="imu_link_joint" type="fixed">
    <parent link="base_link" />
    <child link="imu_link" />
    <origin xyz="0 0 0" rpy="0 0 0" />
  </joint>

  <!-- 描述雷达的尺寸大小、颜色 -->
  <link name="laser_link">
    <visual>
      <origin xyz="0.0 0.0 0.0" />
      <geometry>
        <cylinder length="0.07" radius="0.05" />
      </geometry>
      <material name="gray" />
    </visual>
  </link>


  <!-- 描述 雷达和IMU/底盘 的相对位姿 -->
  <joint name="laser_link_joint" type="fixed">
    <parent link="imu_link" />
    <child link="laser_link" />
    <origin xyz="0.007698 0.014655 -0.00667" rpy="0 0 0" />
  </joint>

</robot>

所有话题

robot@ubuntu:~$ ros2 topic list
/clicked_point
/cloud
/constraint_list
/goal_pose
/initialpose
/joint_states
/landmark_poses_list
/map
/map_updates
/parameter_events
/robot_description
/rosout
/scan_matched_points2
/submap_list
/tf
/tf_static
/trajectory_node_list

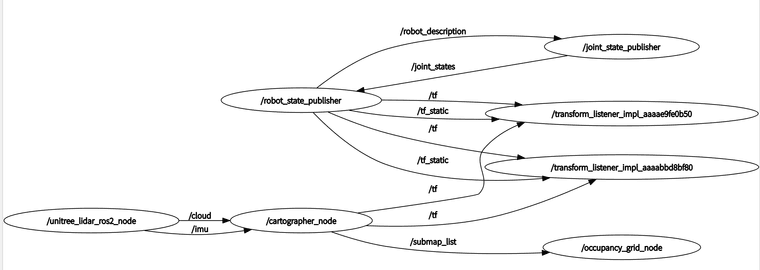

rqt的节点图

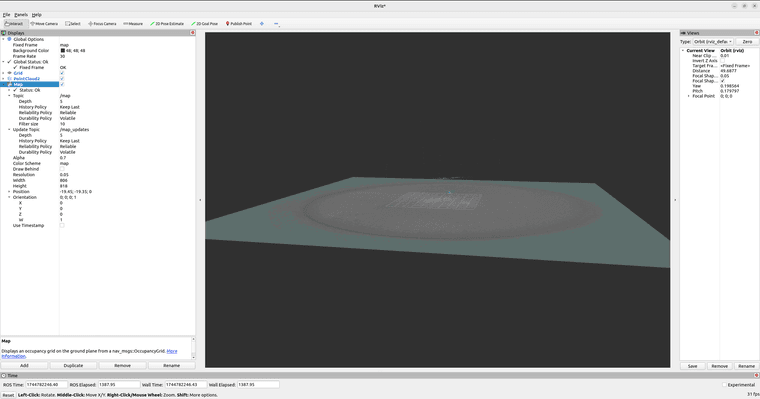

rviz界面
